Sinclair ZX81

Sinclair ZX81

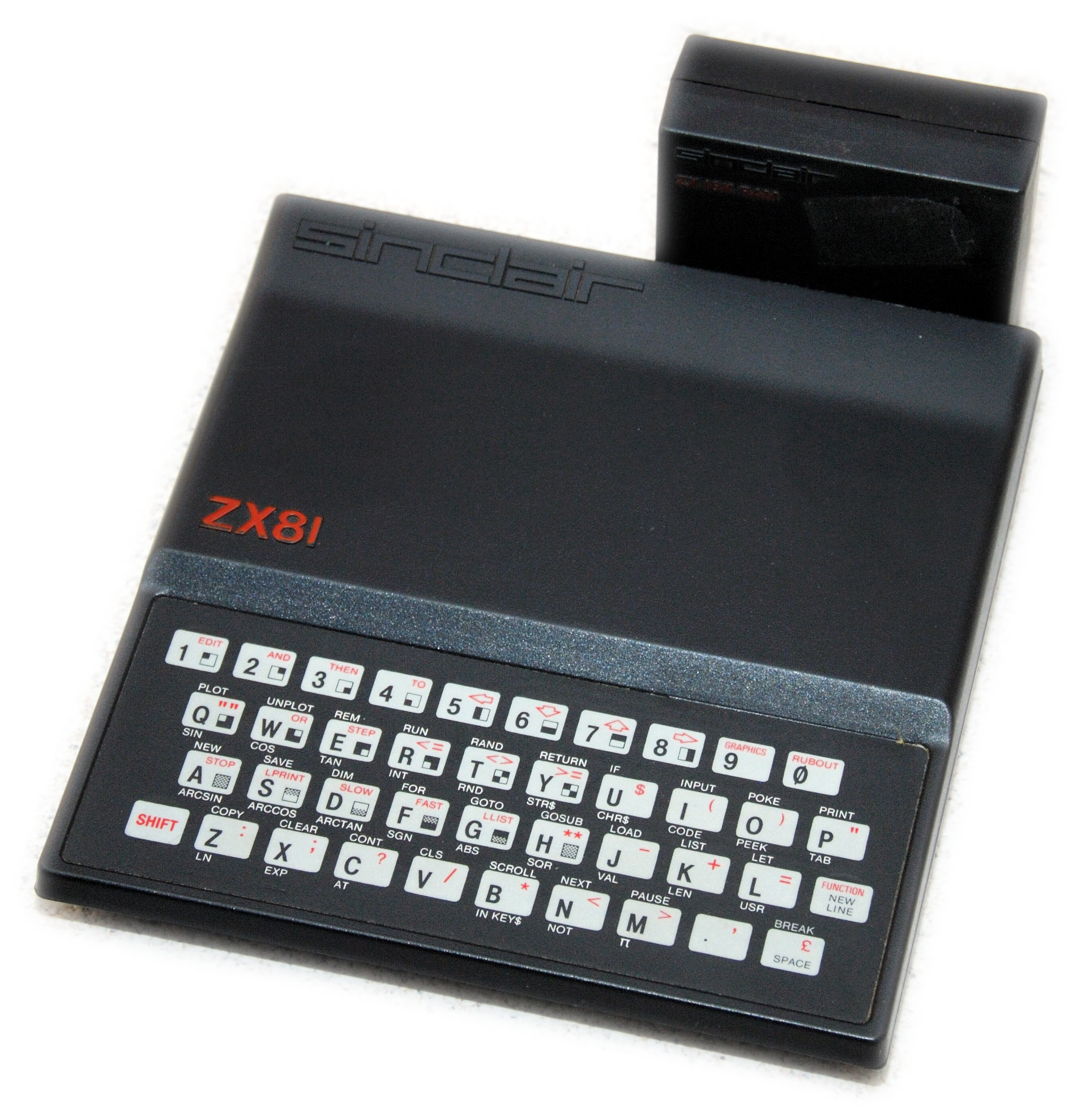

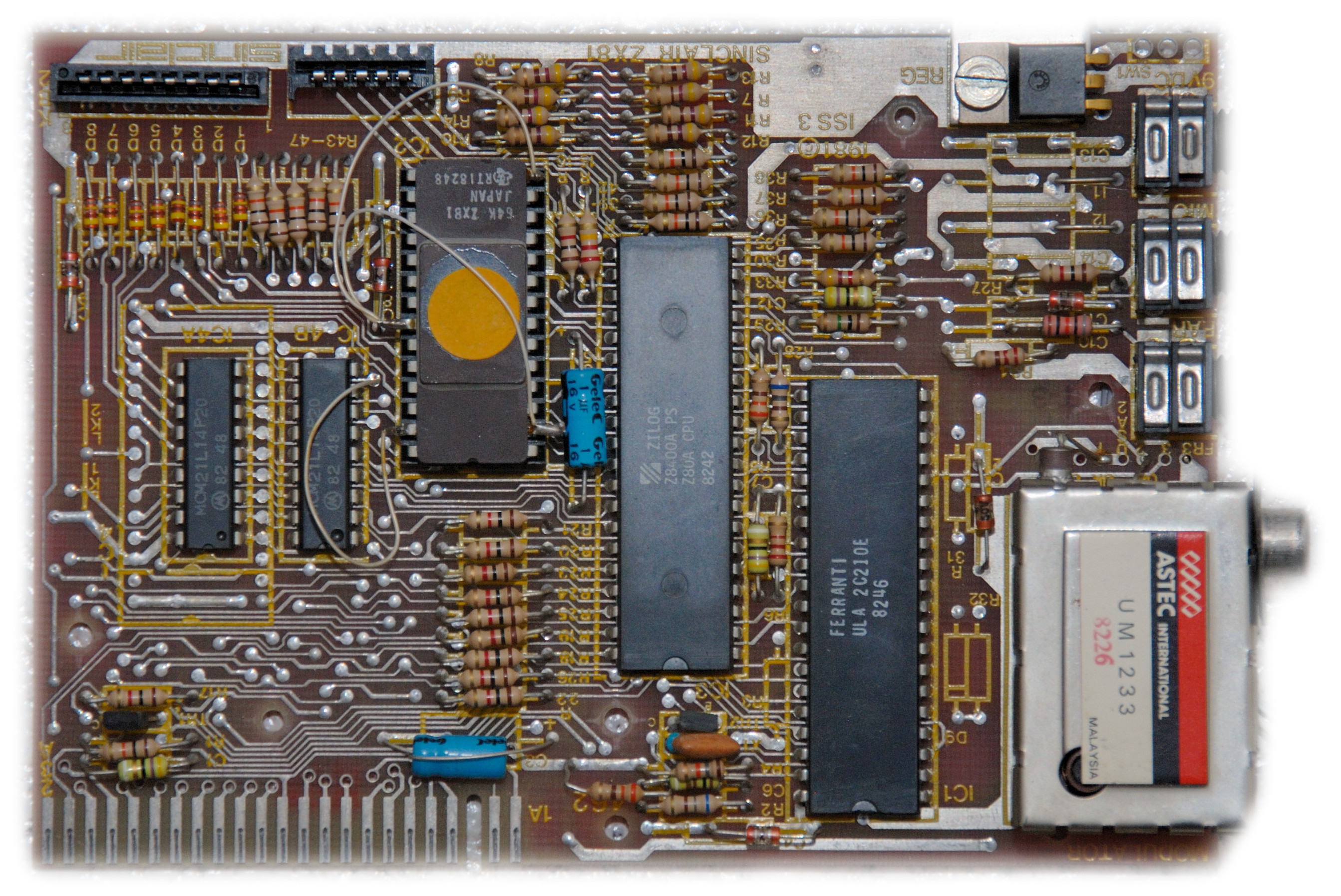

Hier das Innenleben. Interessant finde ich die fliegende Verdrahtung am EPROM.
Das EPROM hat 32kBytes, ist also dem 27256 ähnlich. Die eigentliche Firmware benutzt 8 kBytes (A0 bis A12, 0x0000 - 0x1FFF). Pin 2 (A12) ist auf Low, Pin 28, 27, 26 sind auf dem PCB gebrückt und auf +5V, d.h. Pin 26 (A13) ist High.

Sinclair ZX81 Innenleben
